IBANEZ JEM77P ELECTRIC GUITAR

กีตาร์ไฟฟ้า IBANEZ JEM77P Signature Steve Vai

The JEM77P is a JEM series solid body electric guitar model introduced by Ibanez in 2015. It is a signature model of American guitarist Steve Vai The JEM77P is produced in Indonesia as part of the Primium line.

Ibanez Signature

The Signature series comprises of various Ibanez models that were adapted to the needs of the artist by using more or less extensive modifications correspondingly. The basic idea of a Signature guitar is that the artist in question can replace “his” guitar if necessary almost anywhere and on the other hand, the inclined guitarist can play the same model as his idol. Many features of Signature guitars have now found their way into series production.



Specs

neck type : Wizard / 5pc Maple/Walnut neck w/KTS™ TITANIUM rods

top/back/body : American Basswood body

fretboard : Maple fretboard/Tree of Life inlay

fret : Jumbo frets/Premium fret edge treatment

number of frets : 24

bridge : Edge-Zero II tremolo bridge

string space : 10.8 mm

neck pickup : DiMarzio® Gravity Storm™ (H) neck pickup [Passive/Alnico]

middle pickup : DiMarzio® Evolution® (S) middle pickup [Passive/Ceramic]

bridge pickup : DiMarzio® Gravity Storm™ (H) bridge pickup [Passive/Alnico]

factory tuning : 1E,2B,3G,4D,5A,6E

string : D’Addario® EXL120

string gauge : .009/.011/.016/.024/.032/.042

nut : Locking nut

hardware color : Cosmo black



NECK DIMENSIONS

scale : 648mm/25.5″

a : Width : 43mm at NUT

b : Width : 58mm at 24F

c : Thickness : 18mm at 1F

d : Thickness : 20mm at 12F

Radius : 400mmR

SWITCHING SYSTEM

CONTROLS



Features

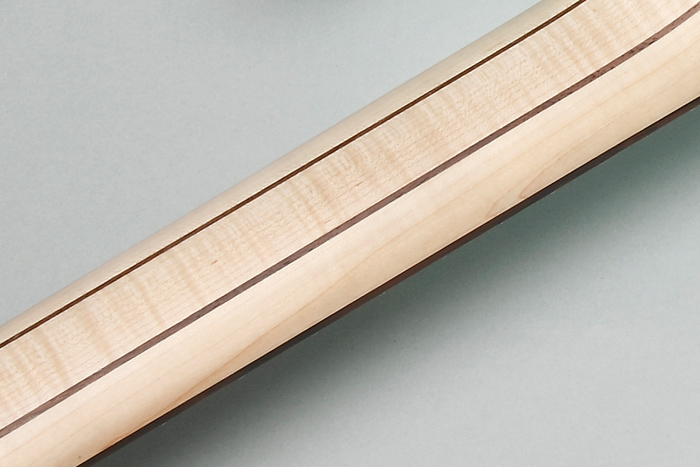

Premium Neck

Smooth, fast & comfortable, the JEM Maple/Walnut Premium neck.

Tree of Life Inlay

Matched color Tree-Of -Life inlay

Monkey Grip

One of JEM’s most recognizable features: Steve Vai’s signature monkey grip. Crank your amp up, grab that baby and hold on for dear life.

Edge-Zero II tremolo bridge

The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.
